waste oil burnr description
Waste oil burners are specially engineered combustion devices designed for the efficient incineration of discarded oils, such as used engine oil, cooking oil, or other industrial lubricants. These burners find extensive application in heating systems, industrial processes, and waste oil recovery operations. The core characteristics and key elements of waste oil burners are outlined below:
| ⚙️ | Fuel Type: Specifically engineered for waste oil combustion, typically offering lower operational costs than conventional fuels. |
| ⚙️ | Combustion Efficiency: Advanced design ensures high-efficiency combustion, maximising energy recovery from waste oil while minimising emissions. |
| ⚙️ | Preheating System: Equipped with a preheating device to reduce oil viscosity, enhancing atomisation and combustion efficiency. |
| ⚙️ | Adjustable Firepower: One-touch switching between high and low flame settings. |
| ⚙️ | Air Atomisation: Utilises high-velocity airflow to impact and break down viscous waste oil, forming extremely fine and uniform droplets to enhance combustion efficiency. |
| ⚙️ | Emission Control: Complies with environmental regulations through technical solutions that reduce particulate matter and other harmful emissions. |

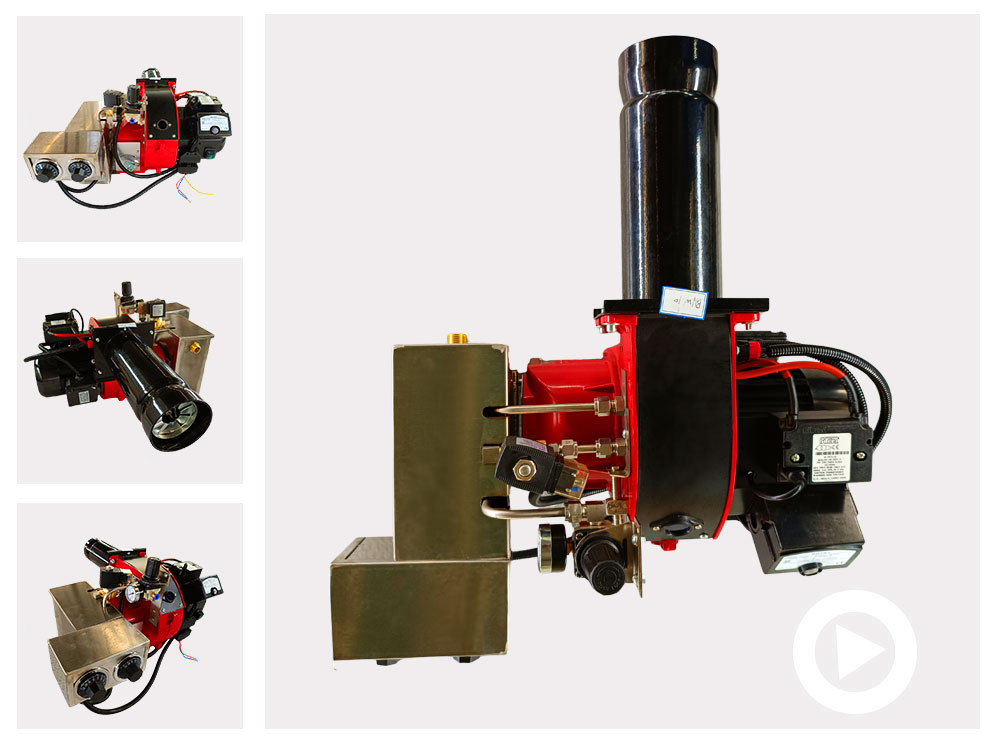

| Product Name | Boiler Waste Oil Burner/Industrial Waste Oil Burner |
| Type | Waste Oil Burner |
| Application | Any application requiring heating, including boilers, dryers, etc. |
Available fuels | Waste crankcase oil, waste automatic transmission oil, waste gearbox oil,diesel oil, used diesel oil, kerosene, used kerosene, used hydraulic oil, used transformer oil, etc. |
| Module | BNW10 |
| Fuel | Waste Oil |
| Heating Power(kw) | 61-122KW |
| Oil Consumption(kg/h) | 6-12 |
| Inner Matrials | Stainless Steel |
| Motor Power(w) | 0.18 |
| Power Supply | 1N 220V 50Hz |
| Control Method | One Stage |
| Packing Size(mm) | 550*470*330 |
| Weight(kg) | 16 |

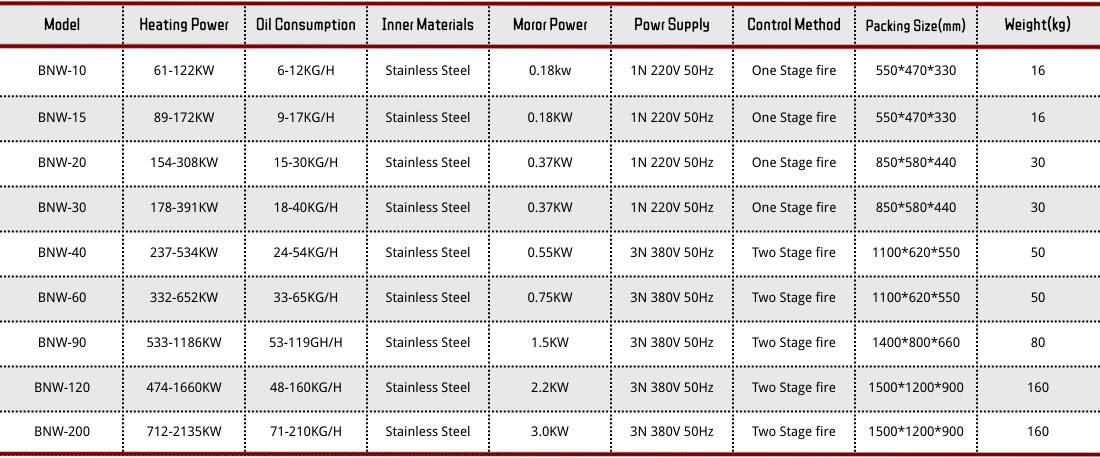

more product model parameters

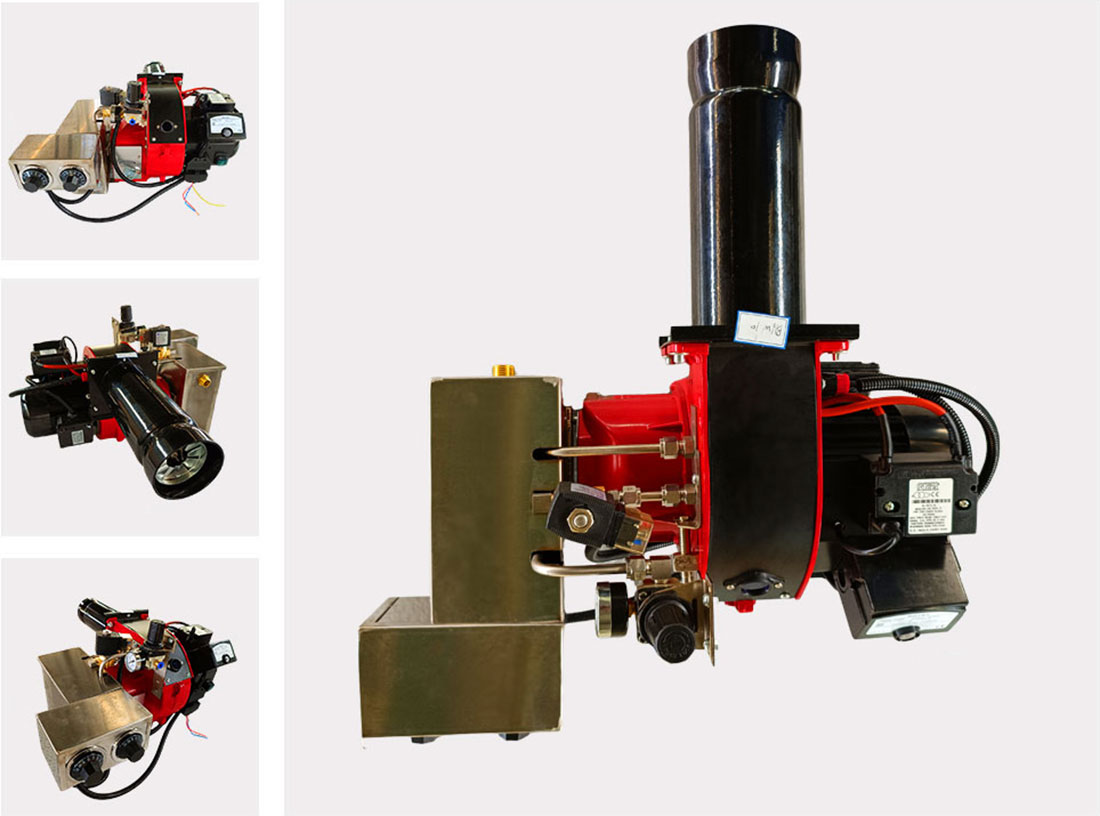

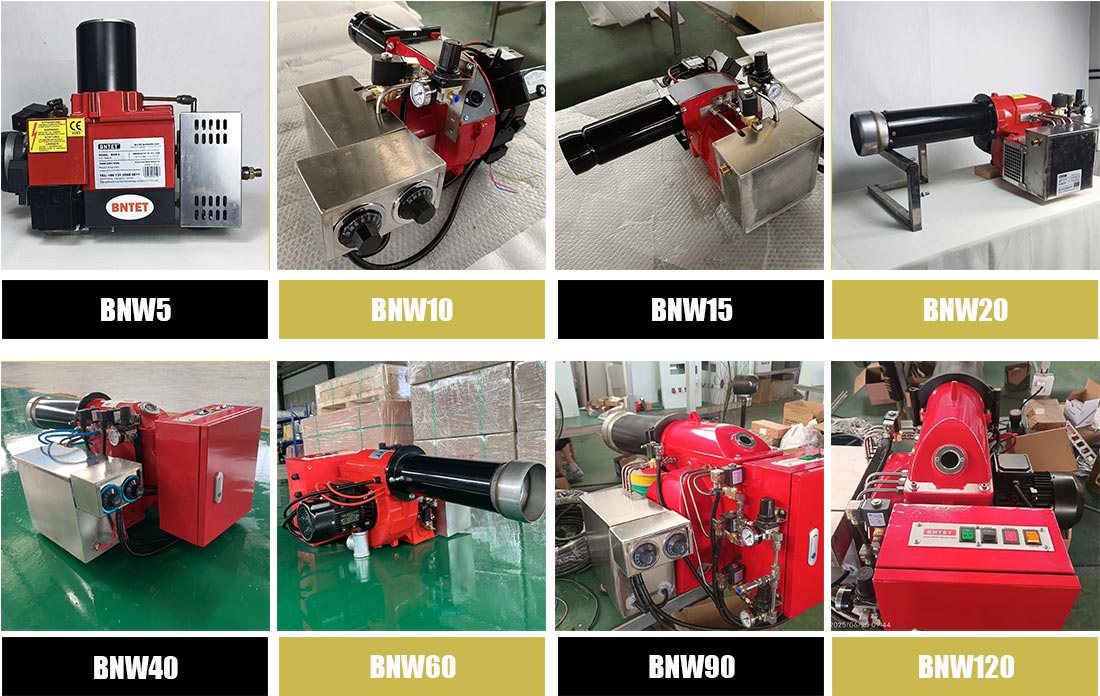

more product display

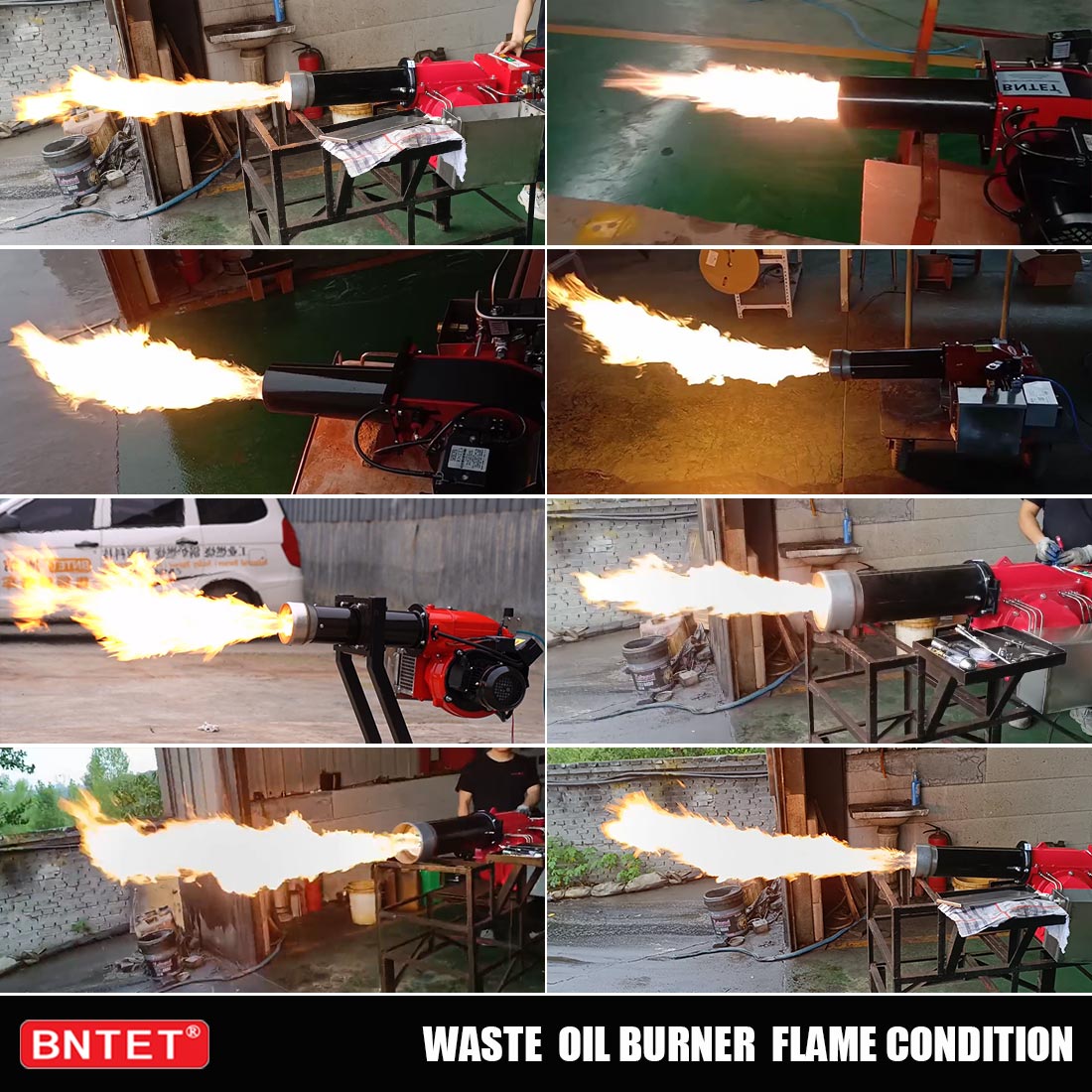

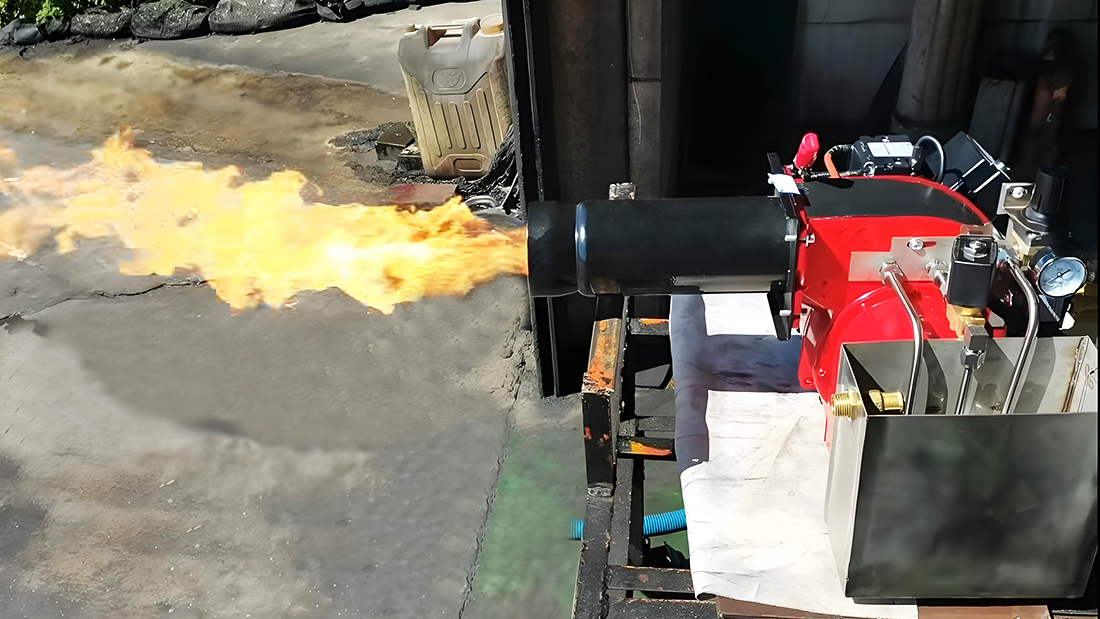

waste oil burner flame condition

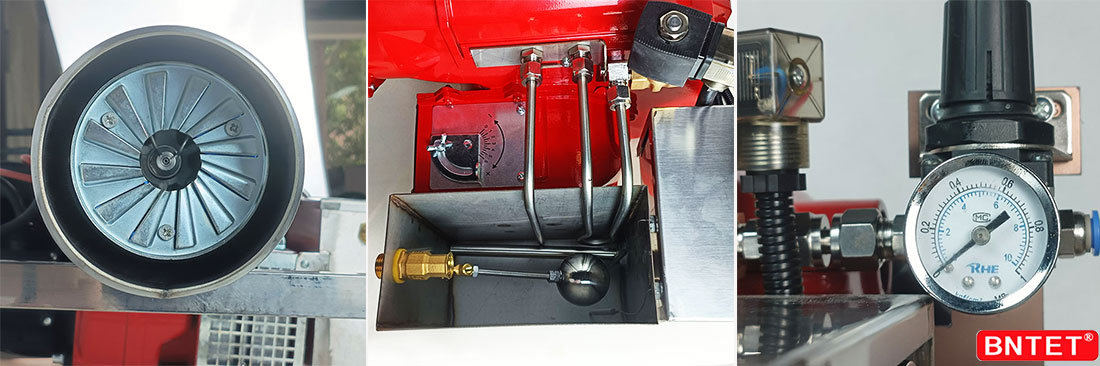

waste oil burner details

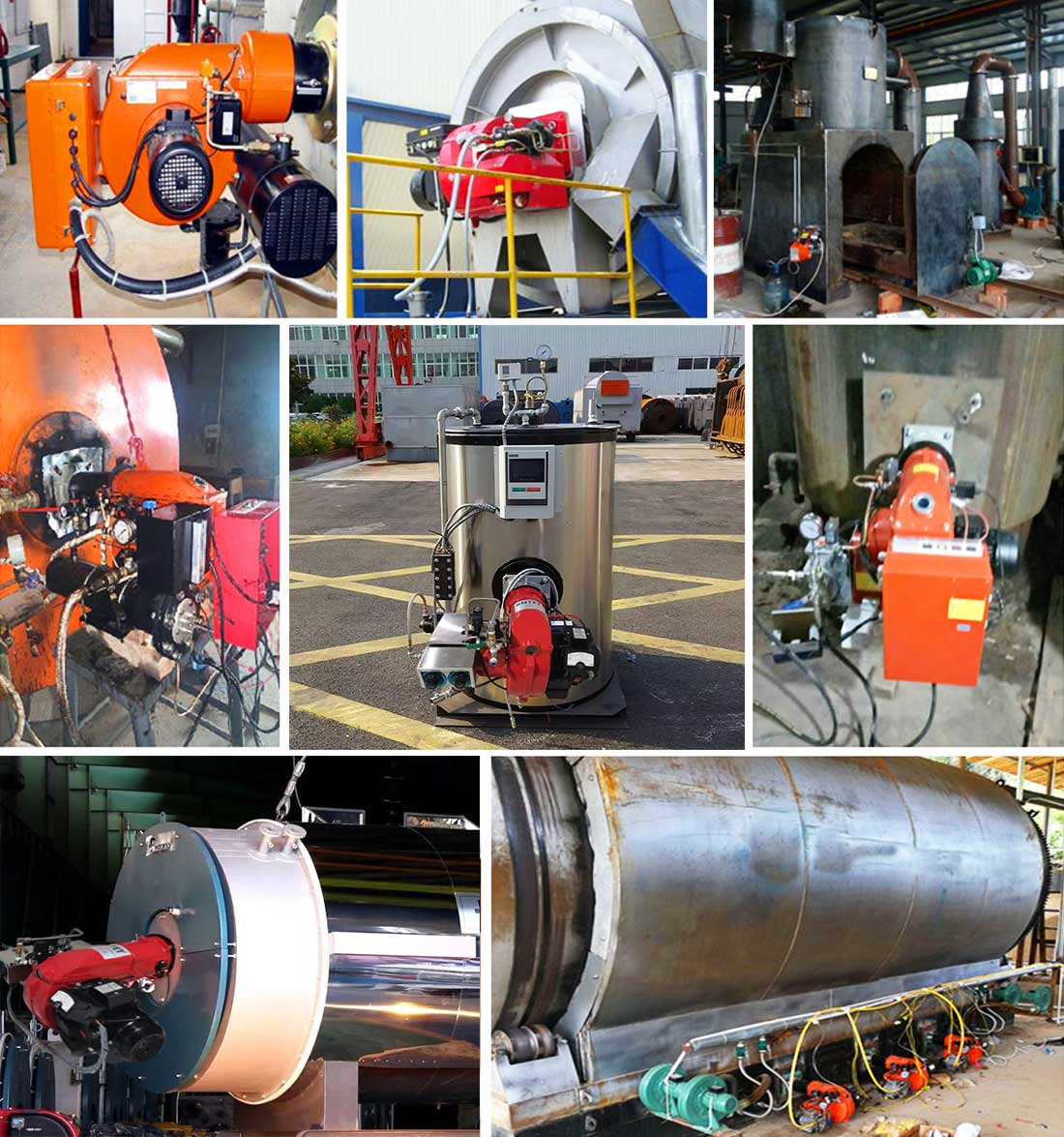

waste oil burner case
