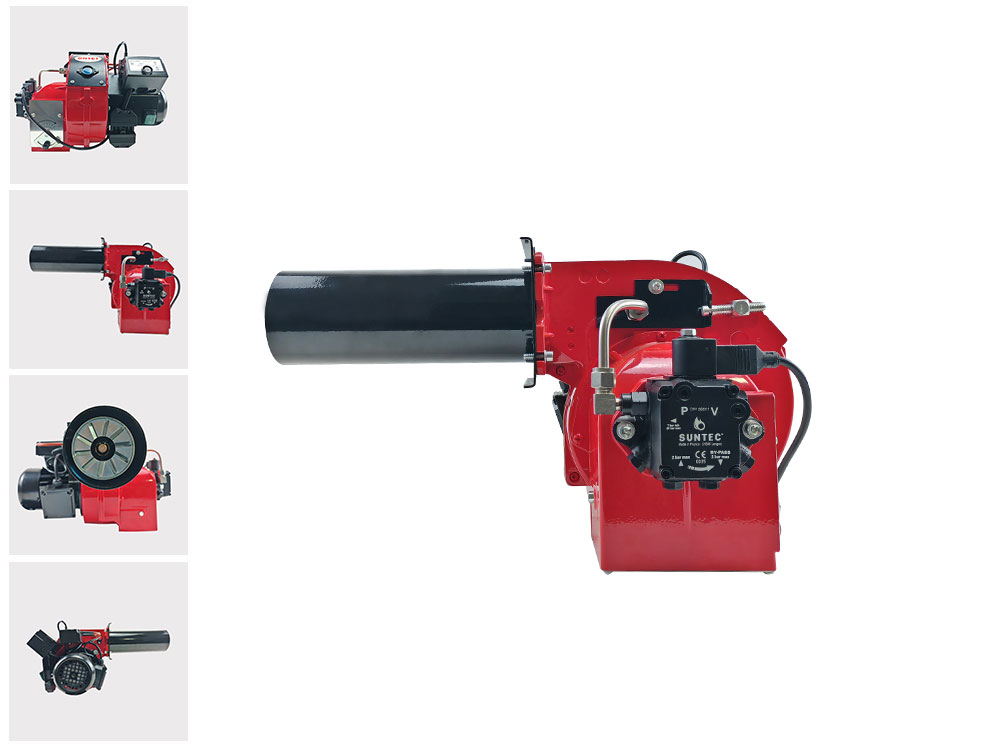

The Feature of Light Oil Burner BNL 14
•Light oil and Heavy oil burner.
•Single/Two stage operation (on/off)
•High pressure mechanical atomisation of fuel using nozzle.
•Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
•Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.
•Single stage manual flow adjustment.
•Two stage airflow regulation for first and second stage by means of hydraulic regulator.
•One flange and one insulating seal for boiler fastening.
•Combustion air intake with airflow adjustment device.
•Sliding boiler coupling flange to adapt to head
•Protrusion of the various types of boilers.
•Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
•Monophase electric motor to run fan and pump.
•Flame presence check by photoresistance.
•Electrical plant protection rating Ip40.
PRODUCT VIDEO
The Data of Light Oil Burner BNL 14
BNL14 PARAMETERS
| Model | BNL14 |
| Fuel | Diesel Oil |
| Power(kw) | 89-172 |
| Oil Flow(kg/h) | 7.5-14.5 |
| Power Supply | 1N AC 50HZ 220V |
| Moter Power(kw) | 0.18 |
| Combustion Chamber Pressure(mbar) | 3 |
| Control | One stage |
| Packing Size(mm) | 580*465*350 |
| Weight(kg) | 16 |
